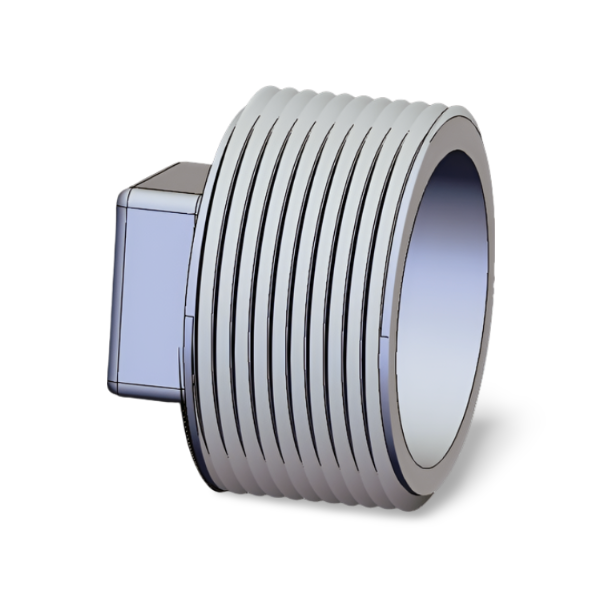

Caps and plugs are used to terminate and seal the end of a pipe run. Caps are available as butt weld or threaded connections and plugs are available as threaded connections.

Details of Pipe Caps

In order to block off the pipeline, these Pipe Fittings cover the pipe end.

By connection type, they are separated into

• Butt Weld Cap
• Socket Weld Cap
• Threaded Cap

Standard Codes

• ASME B16.11
  • The specification for forged socket weld caps and forged threaded caps is ASME B16.11.
  • Small diameter pipes can be served by forged ASME B16.11 caps.
    • They are among the highest grade pipe fittings because of their lovely appearance and excellent mechanical qualities.
• ASME B16.9
  • The Butt Weld Caps adhere to ASME B16.9.
    • They are wrought pipe fittings rather than forgings.
  • There are two types of ASME B16.9 caps
    • Seamless and welded.

Material Used

• Carbon Steel
  • Grades: ASTM A234 WPB, A105 (for forged pipe caps)
  • Applications: Used in oil & gas, power plants, and water treatment systems
  • Advantages: High strength Cost-effective Suitable for high-pressure applications
  • Limitations: Prone to corrosion; requires external coating or painting.
• Stainless Steel
  • Grades: ASTM A403 WP304, WP316
  • Applications: Widely used in food processing, pharmaceuticals, and chemical industries.
  • Advantages: Excellent corrosion resistance, Aesthetic finish, Good for high-temperature and sanitary applications
  • Limitations: More expensive than carbon steel.
• Alloy Steel
  • Grades: ASTM A234 WP11, WP22
  • Applications: High-temperature and high-pressure services such as in boilers, refineries, and power plants.
  • Advantages: High tensile strength, withstands thermal and mechanical stress
  • Limitations: Expensive; not ideal for corrosive environments without lining.
• Nickel Alloys
  • Grades: Inconel, Monel, Hastelloy
  • Applications: Chemical plants, marine environments, nuclear reactors.
  • Advantages: Exceptional corrosion and oxidation resistance Withstands extreme temperatures
  • Limitations: Very high cost; generally used in specialized applications.
• Plastic/Polymer (Thermoplastics)
  • Types: PVC, CPVC, HDPE, PP, PVDF
  • Applications: Low-pressure and non-metallic piping systems in water distribution, drainage, and chemical industries.
  • Advantages: Corrosion-resistant Lightweight and easy to install Cost-effective for low-pressure applications
  • Limitations: Not suitable for high temperatures or pressures.
• Copper and Copper Alloys (e.g., Brass, Bronze)
  • Applications: Plumbing, HVAC, and fire sprinkler systems.
  • Advantages: Excellent thermal and electrical conductivity Naturally corrosion-resistant
  • Limitations: Expensive and less commonly used in industrial piping.
• Ductile Iron / Cast Iron
  • Applications: Municipal water and sewage systems.
  • Advantages: Good strength and toughness Cost-effective in large diameters
  • Limitations: Brittle in freezing conditions and not corrosion-resistant without lining.
